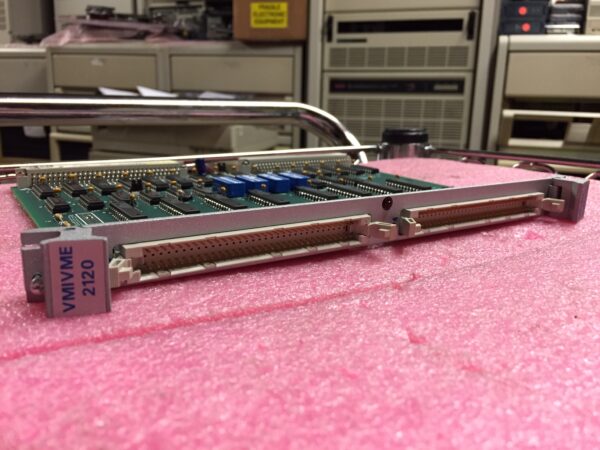

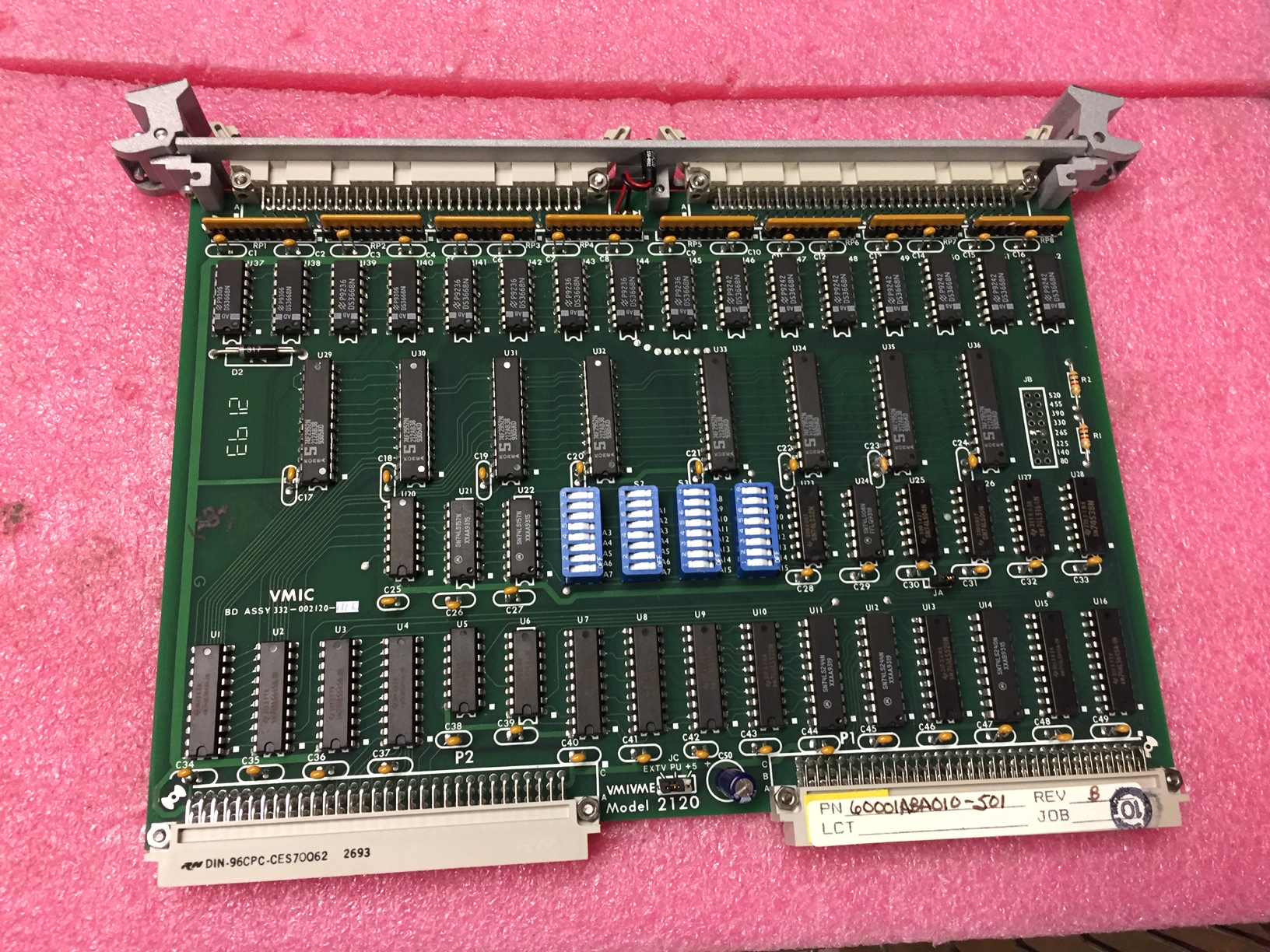

VMIVME-2120 -64-BIT HIGH-VOLTAGE DIGITAL OUTPUT MODULE PART# VMIVME-2120, VMIVME-MODEL-2120, VMIVME MODEL 2120 ,332-002120-000 <BR/> 1 IN STOCK

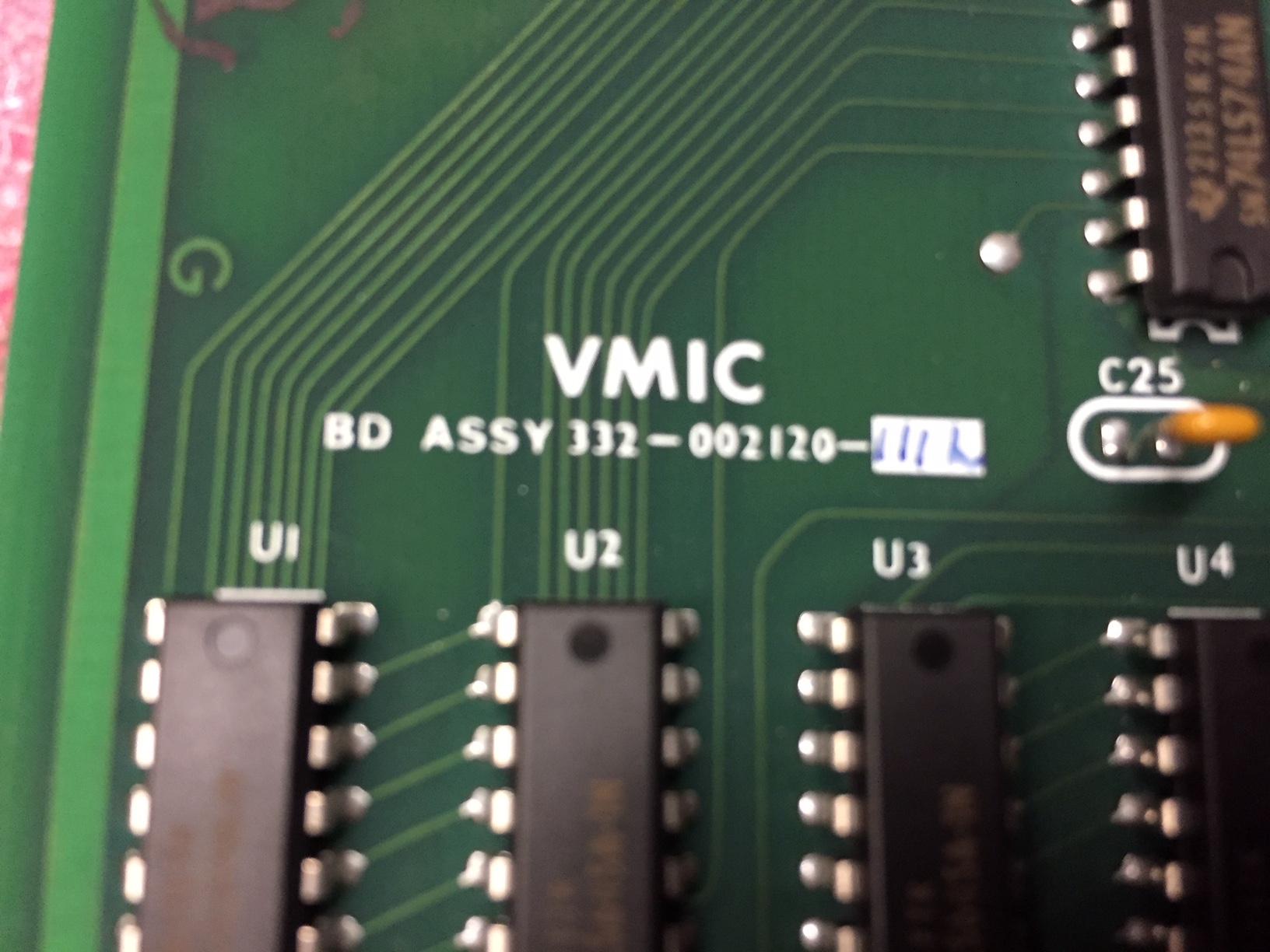

Part Number: 332-002120-000

VMIVME-MODEL 2120

Data Polarity: Positive True
Output Type: High-Voltage Level (Open Collector)
Shutdown Protection: Thermal Shutdown Protection
Pull-Up Resistors: No Pull-Up Resistor Installed
Output Voltage Range: 55 V Absolute Maximum

VME-2120 64-bit High Voltage Digital Output with Built-in-Test. VMEbus specification compatible. Double height form factor.

• 8-, 16-, or 32-bit transfers
• High reliability DIN-type I/O connectors
• Compatible with Intelligent I/O Controllers
• Output clamp diodes for inductive flyback protection
• High breakdown voltage (55V)
• or inductive loads
• Automatic surge current shutdown protection option
• Thermal shutdown protection option for driving incandescent
• High current drivers (600mA sink)
• 64 bits of high voltage outputs
