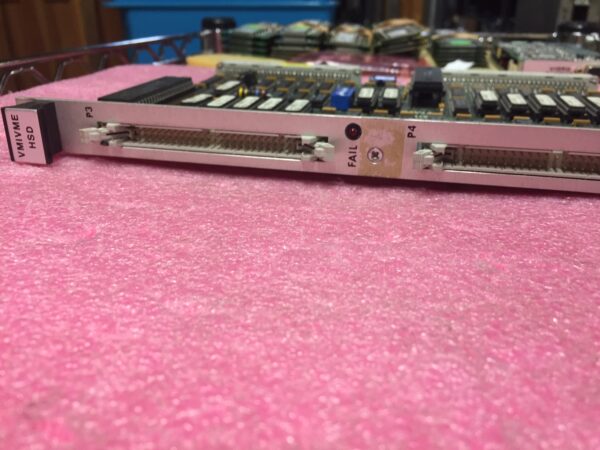

VMIVME-HSD VMIC VMEbus-TO-ENCORE HSD/IBL INTERFACE
3 IN STOCK
VMIVME-HSD VMIC VMEbus-TO-ENCORE HSD/IBL INTERFACE

The VMIVME-HSD / -HSDA provides a high performance 32-bit DMA Link between the VMEbus and the Encore HSD Model 9132 and Encore Model 9136 Inter-bus Link (IBL). The VMIVME-HSD / -HSDA incorporates a 68430 DMA controller chip to perform its DMA transfers and provides the logic necessary to control the VMEbus during transfers to/from the Encore HSD. The VMIVME-HSDA also contains logic to implement a VMEbus interrupter and logic to allow the VMEbus to interrupt the Encore HSD.

Features:
• 32-bit DMA Transfers
• HSD Compatibility
• IBL Compatibility
• Operates as an HSD Slave or HSD Master (Revision F Board)
• Also Operates as an IBL High Priority Interface or IBL Low Priority Interface
• Two Board Set can be Used as a VME-to-VME Link
• VMEbus (IEEE P1014) Compatible
• Programmable Interrupt Vectors and Levels
• Programmable VMEbus Address Modifiers
• Fail LED
• Switch Selectable Board Address
• Uses VME Short I/O Address Space for On-Board Register Addressing
