VMIVME-7805

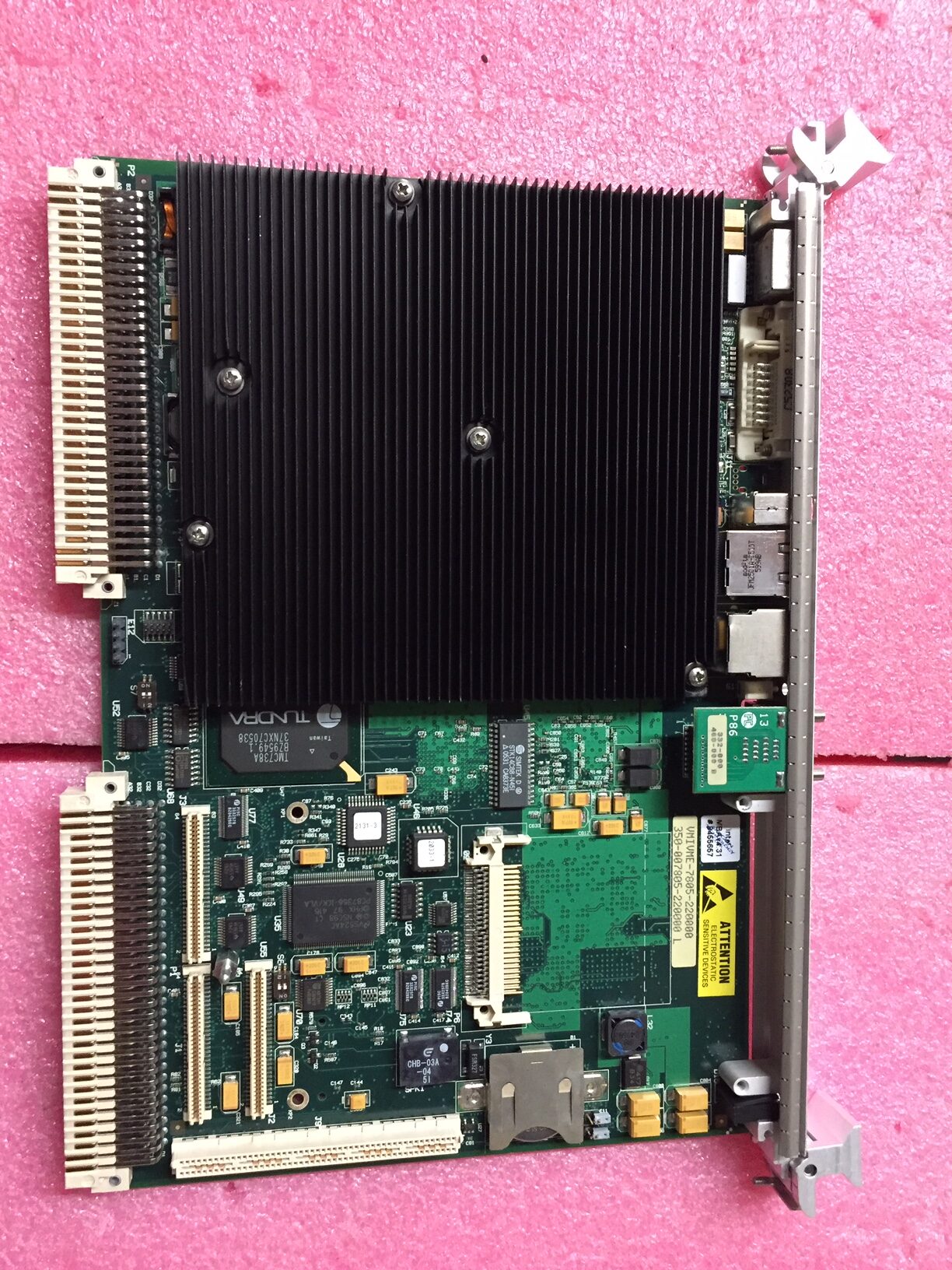

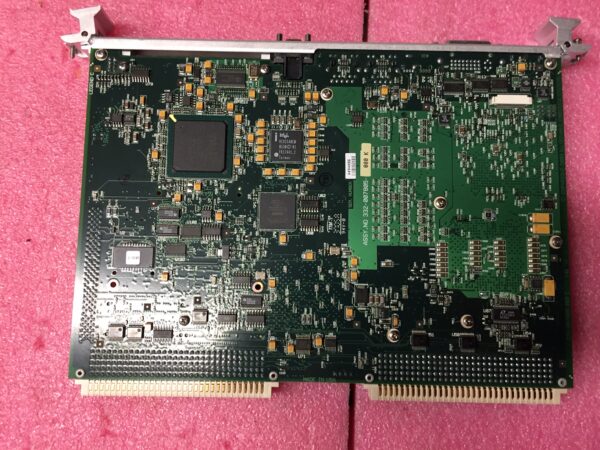

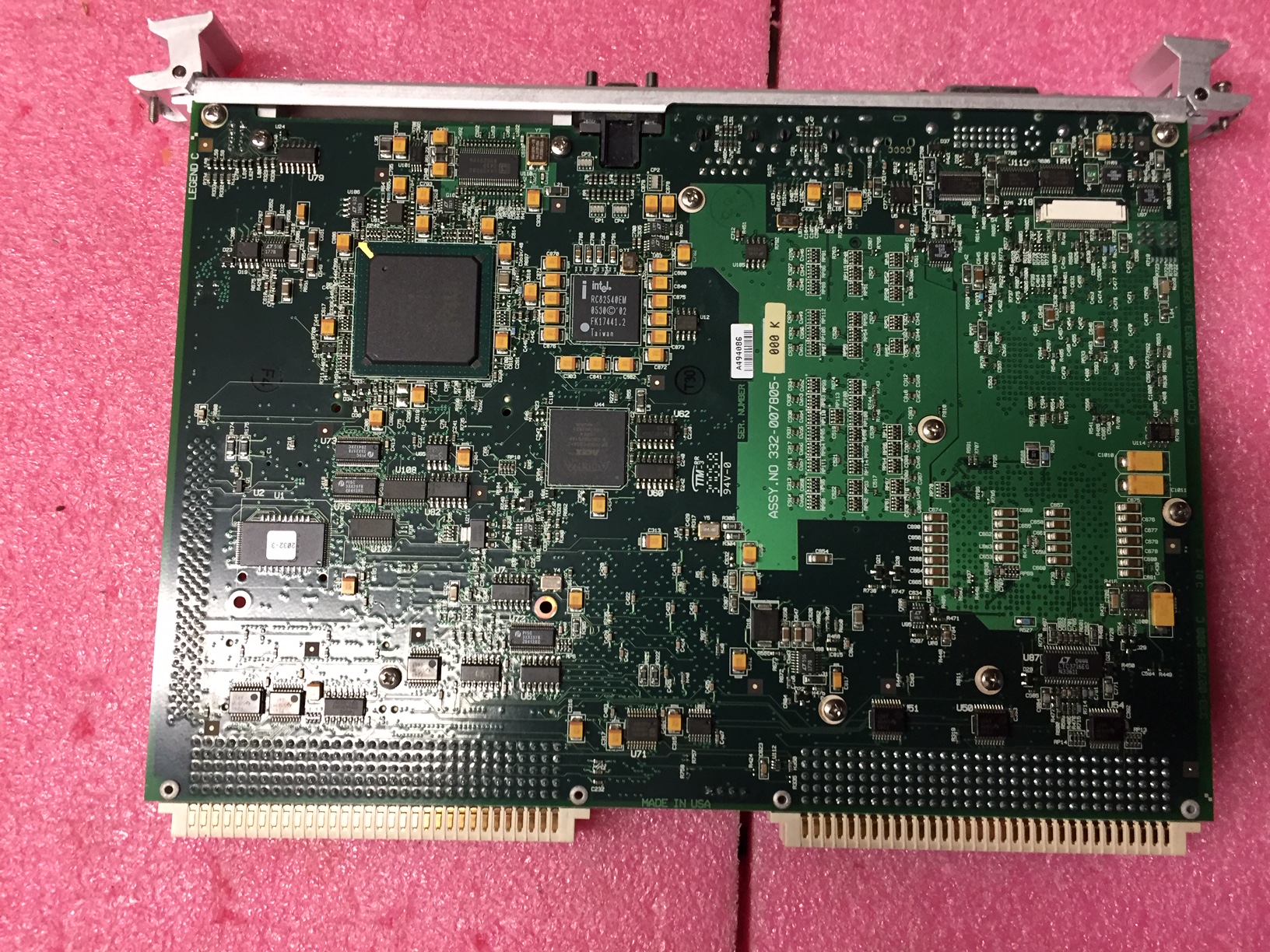

VMIVME-7805, VMIC VMIVME-7805 -Intel® Pentium® 4 Processor – M-Based VMEbus Single Board Computer, 2.2 GHZ CPU 512 MB MEMORY
3 IN STOCK

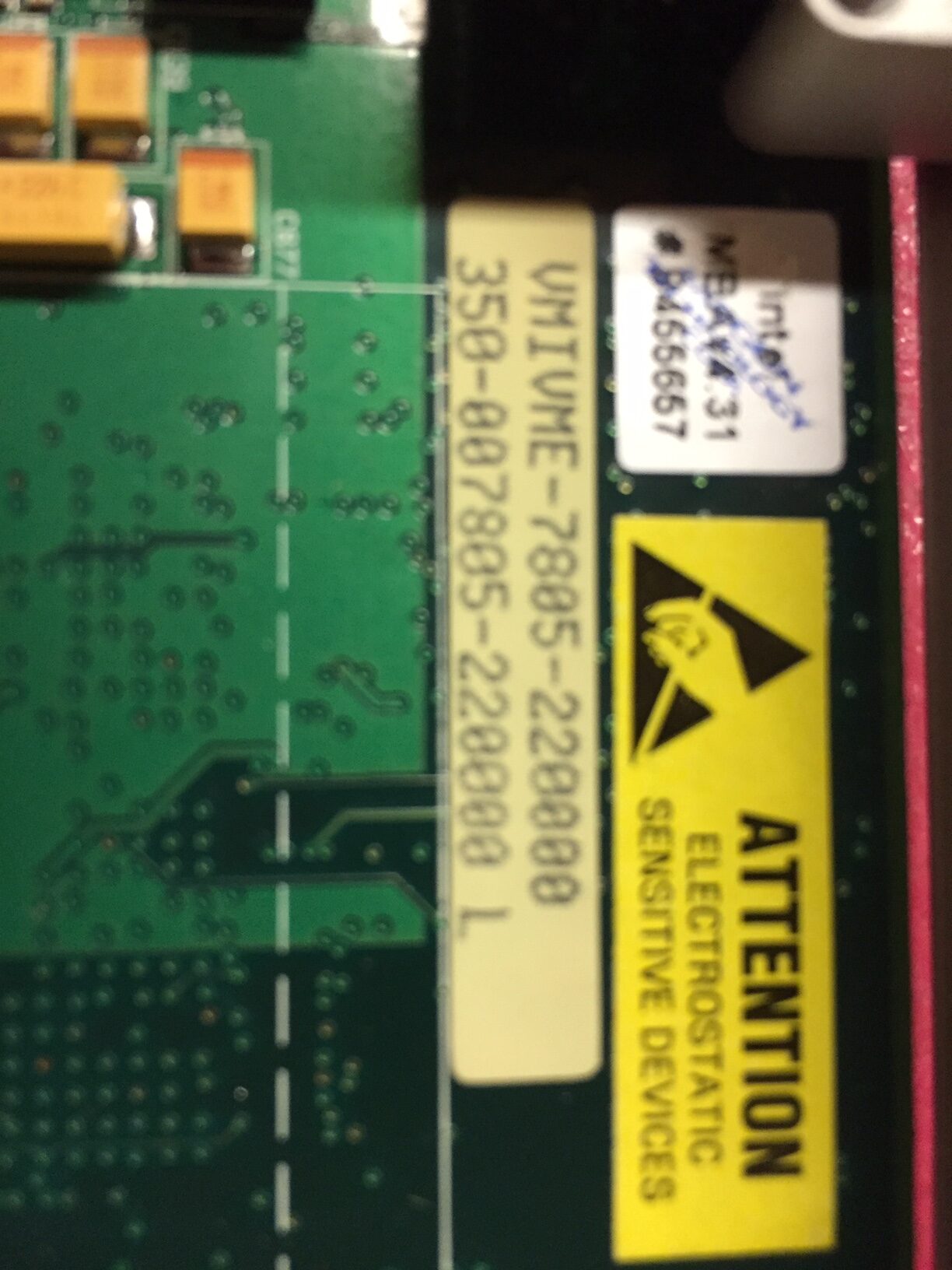

VMIVME-7805-220000, VMIC VMIVME-7805 ,350-007805-220000, 332-007805-000K
- Up to 2.20 GHz Pentium 4 Processor – M with 512 KB Advanced Transfer Cache
- Up to 1 GB PC1600 DDR SDRAM using One SODIMM

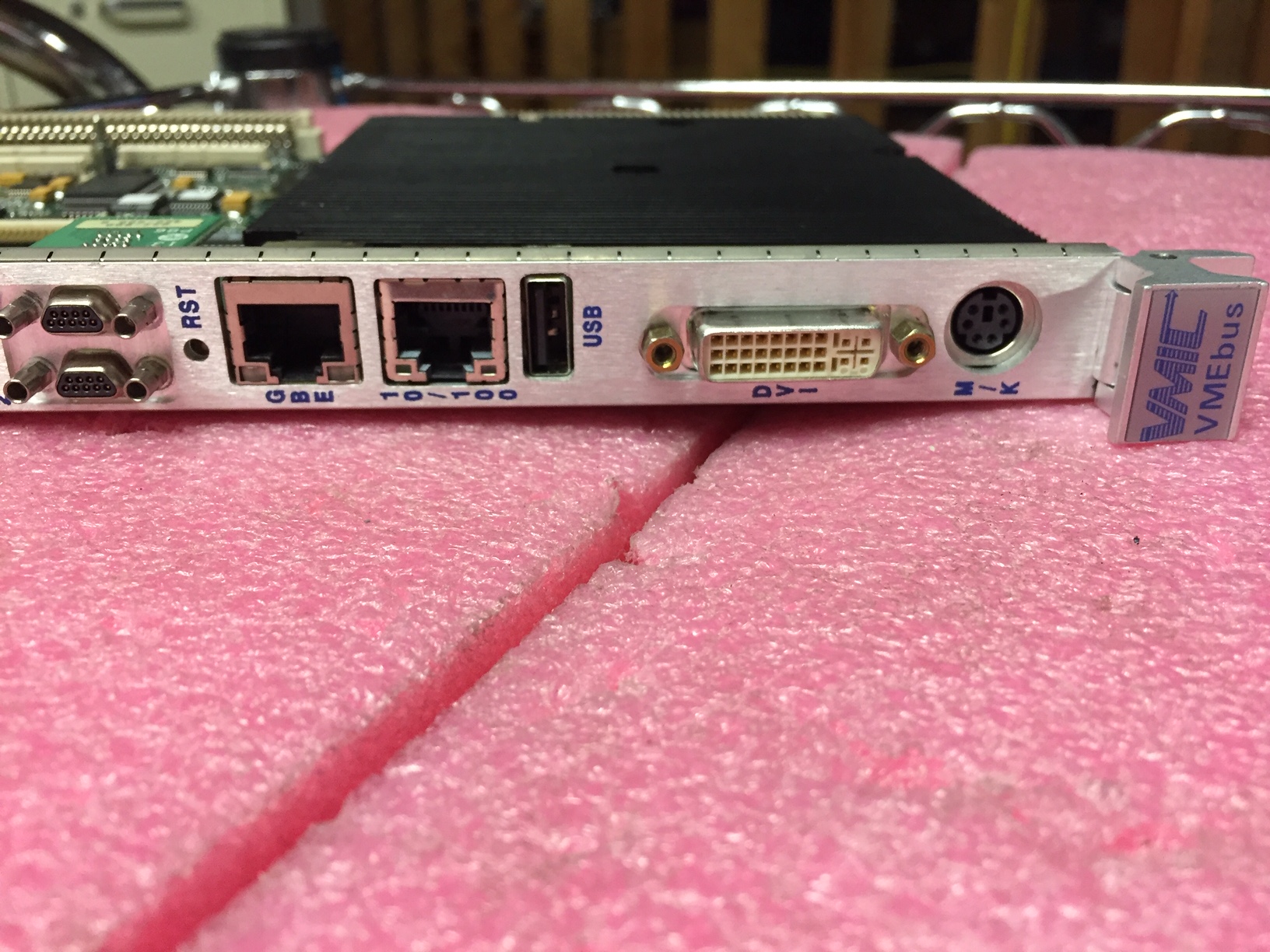

- Internal SVGA and DVI Controller
- 400 MHz System Bus via Intel 852GM Chipset
The GE Fanuc / VMIC VMIVME-7805 Intel Pentium 4 Processor-M Based VMEBus SBC brings the Intel Pentium 4 Processor – M to VME, offering processor speeds up to 2.2 GHz. The Intel Pentium 4 Processor – M is the first Intel mobile processor with the Intel NetBurst microarchitecture. The Intel Pentium 4 Processor – M utilizes a 478-pin, Micro Flip-Chip Pin Grid Array (Micro-FCPGA) package, and plugs into a surface-mount, Zero Insertion Force (ZIF) socket. The Intel Pentium 4 Processor – M maintains full compatibility with IA32 software.
The Intel NetBurst microarchitecture features include hyper-pipelined technology, a rapid execution engine, a 400 MHz system bus, and an execution trace cache. The hyper-pipelined technology doubles the pipeline depth in the Intel Pentium 4 Processor – M allowing the processor to reach much higher core frequencies. The rapid execution engine allows the two integer ALUs in the processor to run at twice the core frequency, which allows many integer instructions to execute in 1/2 clock tick. The 400 MHz system bus is a quad-pumped bus running off a 100 MHz system clock, making 3.2 Gbyte/s data transfer rates possible. The execution trace cache is a first level cache that stores approximately 12 Kbyte decoded micro-operations, which removes the instruction decoding logic from the main execution path, thereby increasing performance.
Additional features within the Intel NetBurst microarchitecture include advanced dynamic execution, advanced transfer cache, enhanced floating point and multimedia unit, and Streaming SIMD Extensions 2 (SSE2). The advanced dynamic execution improves speculative execution and branch prediction internal to the processor. The advanced transfer cache is a 512 Kbyte on-die level 2 (L2) cache. A new floating point and multimedia unit has been implemented providing superior performance for multimedia and mathematically intensive applications.
