VMIVME 2128

VMIVME-2128, VMIC/ABACO/GE VME-2128A 128-bit High-Voltage Digital Output Board with Built-in-Test, 332-012128-311A
12 EACH IN STOCK

VME-2128 version reached the end of the product life cycle (end-of-life) on April 19, 2018. The VME-2128A is a form, fit, and function replacement.

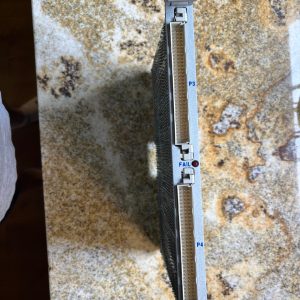

Front panel with fail LED
Sockets are provided for warming resistors, which are supplied by the user
Optional pull-up resistors for electronic switch outputs
A24:A16:D32/D16/D08 (EO): slave 39/3D:29/2D:6U form factor
VMEbus compatible (ANSI/IEEE STD 1014-1987 IEC 821 and 297)
Thermal shutdown protection
High breakdown voltage (55 V)
Output clamp diodes for inductive flyback protection
Compatible with Intelligent I/O Controllers
Built-in-Test logic for fault isolation
High-current drivers (600 mA sink)
Automatic surge current shutdown protection
128 bits of high-voltage outputs
