VMIVME-1128

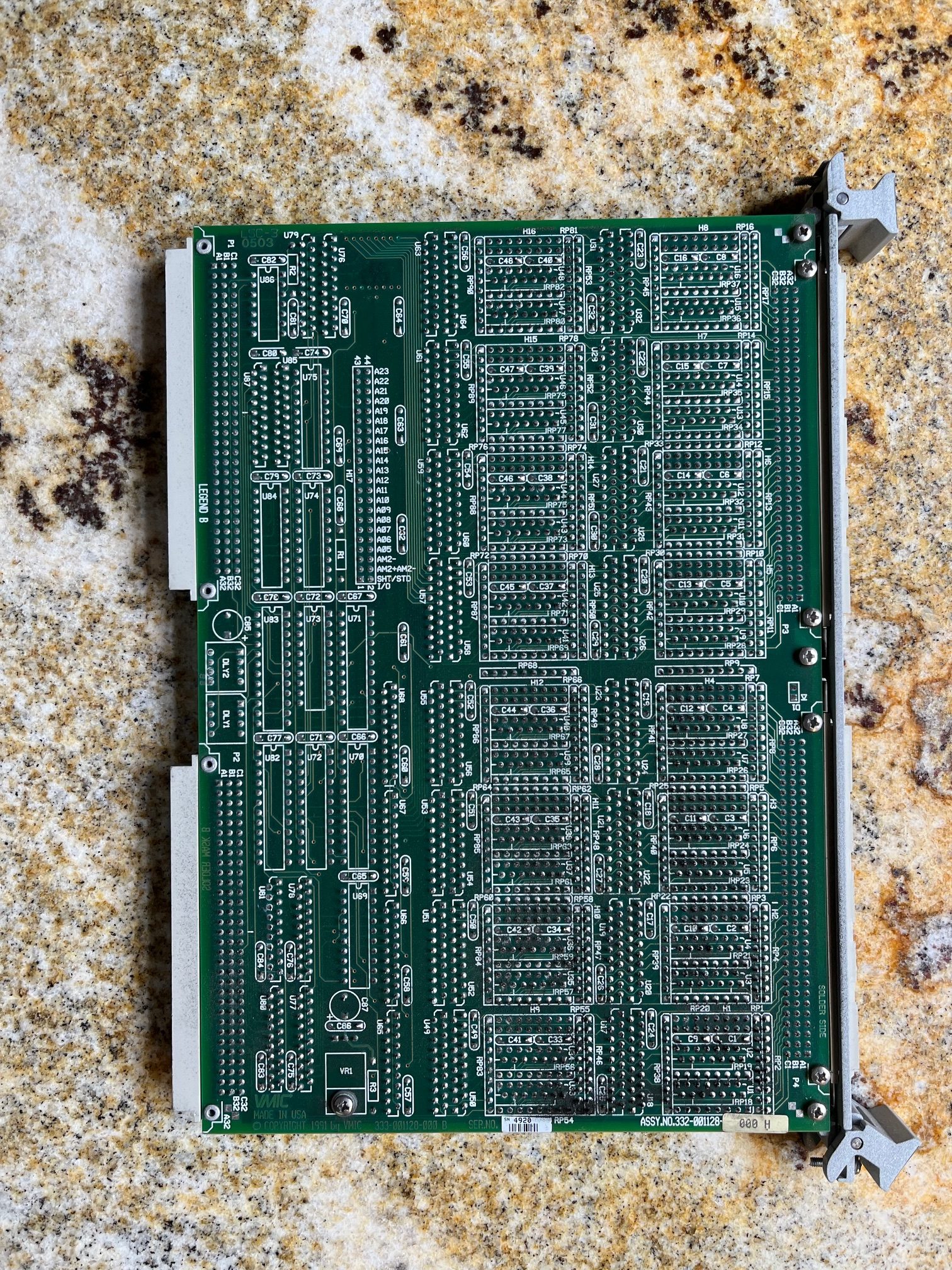

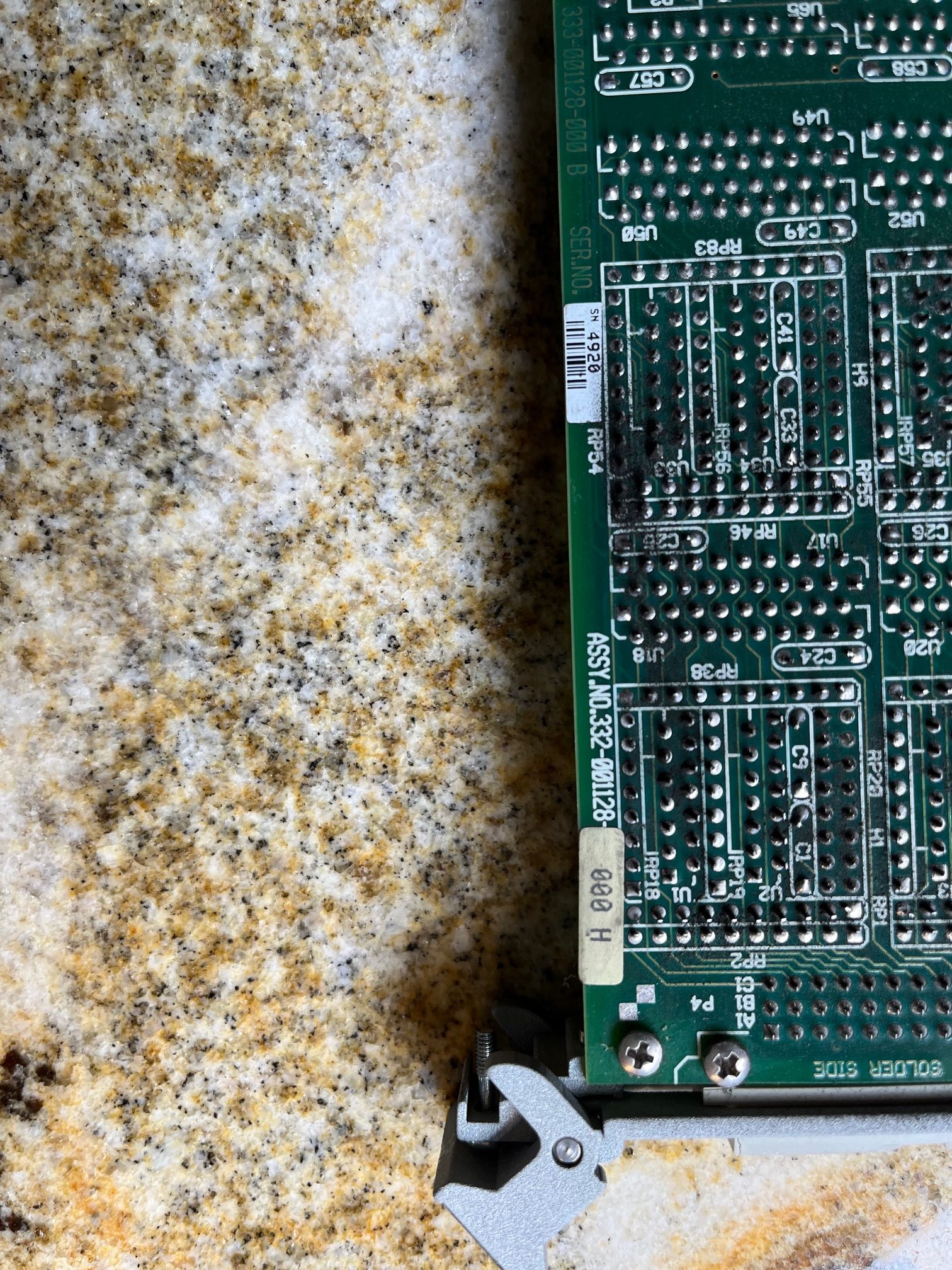

VMIVME-1128 VMIC/ABACO/GE, 128-bit High-Voltage Digital Input Board with Built-in-Test. 332-001128-000 H

24 EACH IN STOCK

• 128 bits of high-voltage digital inputs
• Each group of eight inputs is jumper selectable to monitor
voltage source or current sinking signals
• Open circuit provides logic zero or (jumper-selectable)
logic one
• Built-in-Test logic for fault detection and isolation

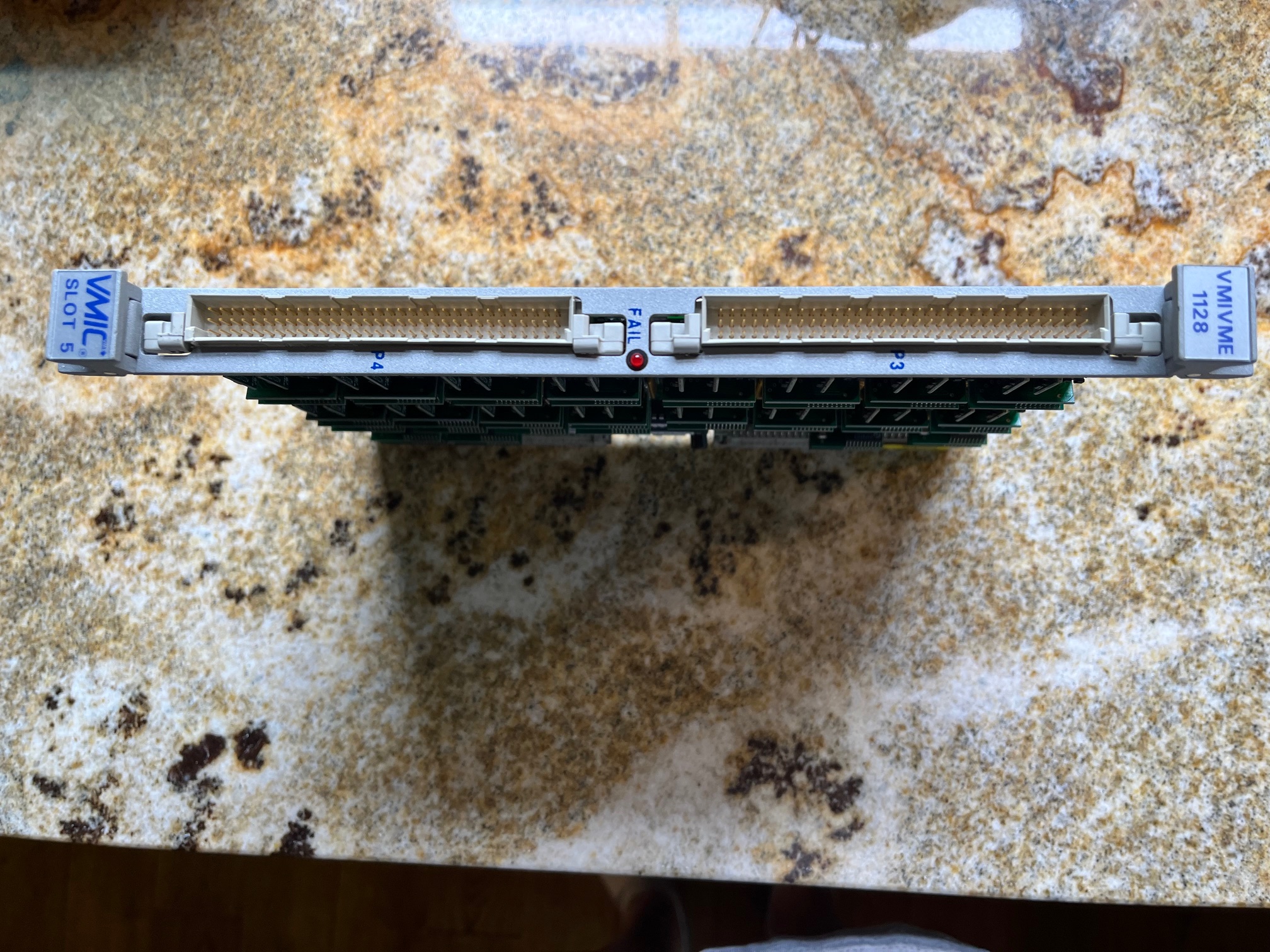

• Front panel with fail LED
• User-selectable input voltage thresholds (0.61 to 34 V) with
inputs of 0 to 66 V (see Table 1)
• Complies with the VMEbus Specification Rev. C.1
• A24:A16:D32/D16/D08 (EO): slave: 39/3D:29/2D
• Double Eurocard form factor (6U)
• High reliability DIN-type I/O connectors
• Compatible with Abaco Systems Intelligent I/O Controllers
• (VME-90xx series) and Universal I/O Controllers
• (VME-9300 series)
